| Electrical | |
| Impedance | 50Ω |
| Frequency Range | 0 - 4GHz |
| Material | |
| Metal Parts | Brass / Au plated |
| Centre Pin | BeCu / 30µ Au |
| General Information | |
| Mounting Type | Top Entry |
| Leg Length | 3.9mm |

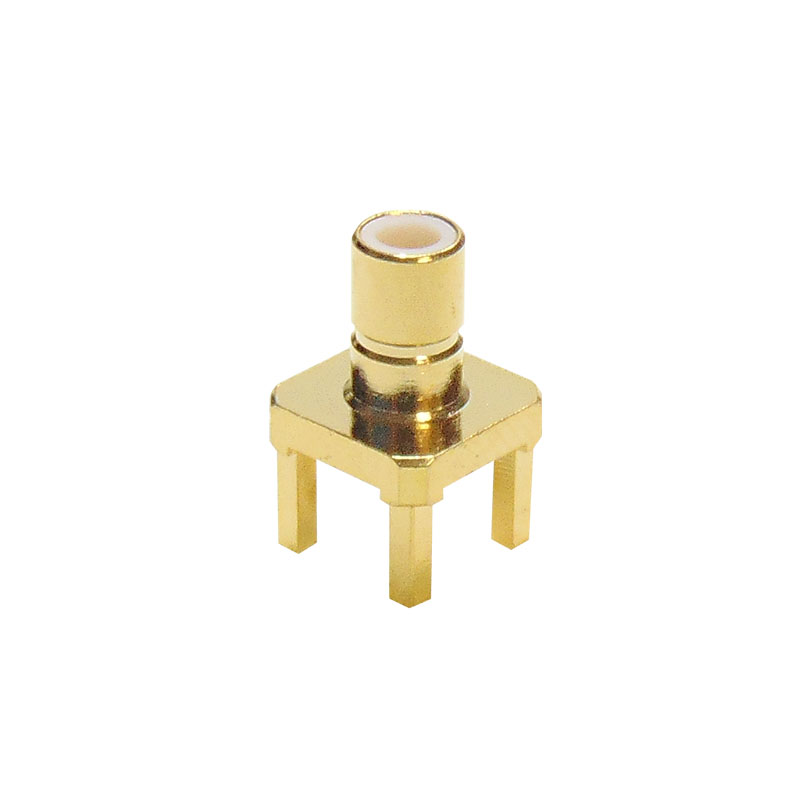

ZDS-04-TE39-GG - 4GHz Top Entry PCB Mounted SMB Socket
- Product Code: ZDS-04-TE39-GG
The ZDS-04-TE39-GG is a top entry PCB mounted SMB socket which is rated for all frequencies up to 4GHz. The connector is designed for PCB thicknesses of up to 3.8mm.
This connector was previsouly available as part number XDT-6300-GGAW.
