| Electrical |
| Impedance |
50Ω |
| Frequency Range |
0 - 4GHz |
| Connector Type |
Female |
| Material |
| Metal Parts |
Brass / Ni |
| Centre Pin |
Brass / Au plated |
| Insulators |
PFTE |
| Environmental |
| Temperature Range |
--65 to 85°C |
| Processing |
| Processing |
Hand or wave soldering |
| General Information |
| Mounting Type |
Top Entry |
| Leg Length |
4.6mm |
| Hardware |
None |

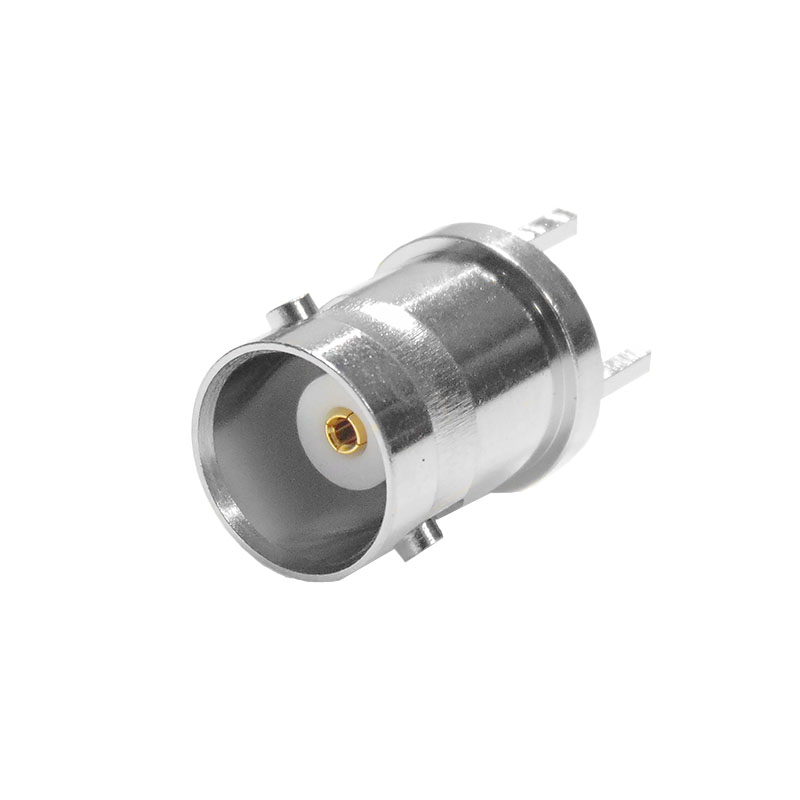

ZBS-04-TE46-NN - 4GHz Top Entry BNC Socket
- Product Code: ZBS-04-TE46-NN
The ZBS-04-TE46-NN is a female top entry BNC connector. This 4 leg board mounted connector offers frequencies up to 4GHz in a 50 ohm format. The connector features a gold plated pin with a protective sleeve around the contact.
