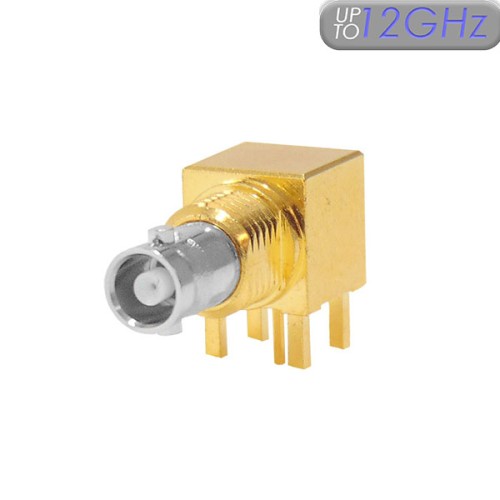

XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector
XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector  XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector  XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector

Electrical
Impedance 75Ω
Frequency Range 0 - 12GHz
Working Voltage 170Vrms
Dielectric Withstanding Voltage 500Vrms
Reflection Factor (VSWR) 1.08(max) DC - 6GHz 1.14 (max) 6 - 12GHz
Contact Resistance Centre contact 5.0mΩ Outer contact 2.5mΩ
Insulation Resistance 1000MΩ
Connector Type Female
Material
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum wave and hand soldering temperature 245°C
General Information
Mounting Type Right Angled
Leg Length 2.6mm
Hardware Available separately

XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector

  • Product Code: XPS-12-RB26-GN


Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-RB26-GN is a right angled Micro BNC connector a longer centre contact to the connector legs and is suitable for PCB thicknesses up to 2.5mm.

This connector was formerly sold as:
C-SX-199 when supplied with ANP-C2-CBN-1.60 (2 slot nut)
C-SX-199GF when supplied with ANP-C4-CSN-1.60 (4 slot magnetic nut)
C-SX-199NGZZ as a connector only part

    XPS-12-RB26-GN - Right Angle PCB Bulkhead Micro BNC Connector
