XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)
XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)  XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)  XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)

Electrical
Impedance 75Ω
Frequency Range 0 - 6GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.18 (max) DC - 3GHz 1.32 (max) 3 - 6GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance 1000MΩ
Connector Type Female
Material
Metal Parts Brass / Ni
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum wave and hand soldering temperature 265°C
General Information
Mounting Type Top Entry
Leg Length 2.7mm

XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)

  • Product Code: XGS-06-TE27-NNI

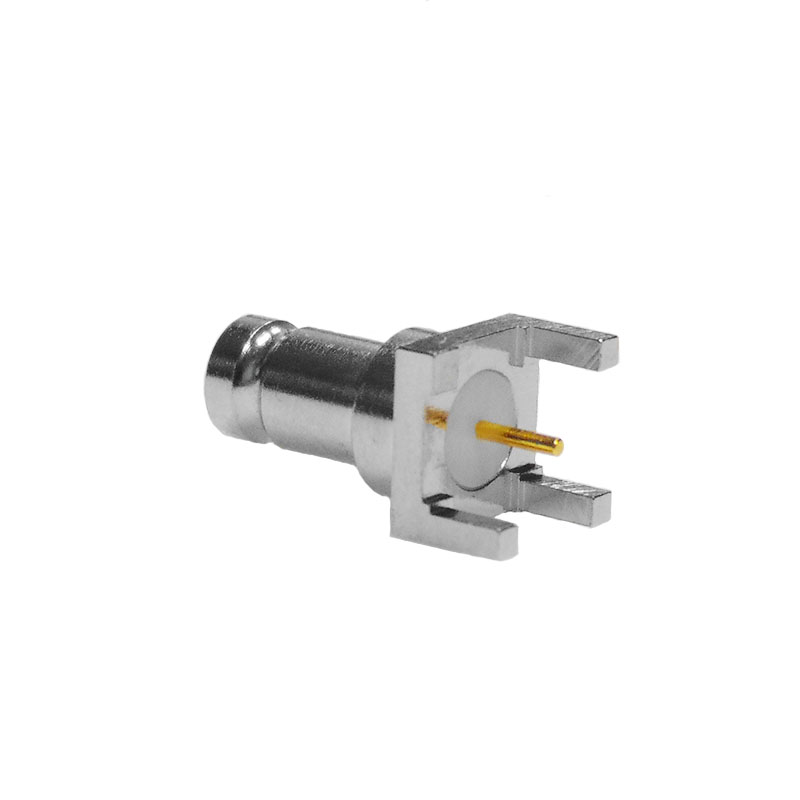

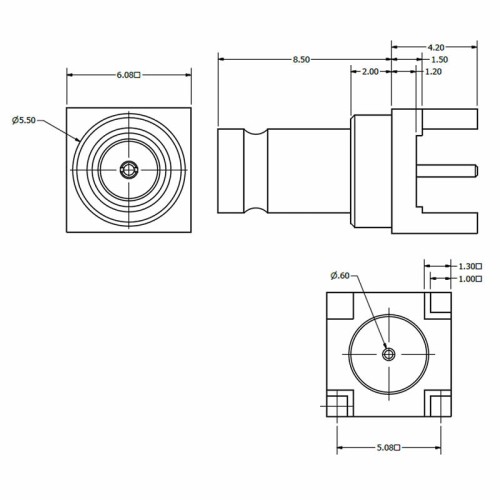

The XGS-06-TE27-NNI is a top entry PCB mounted, short body connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector features 3 legs with a leg length of 2.7mm.

This connector was previously sold as C-SX-134N

    XGS-06-TE27-NNI - Top Entry DIN 1.0/2.3 Connector (Short Body)

Tags: 6GHz, Top Entry, DIN 1.0/2.3,
