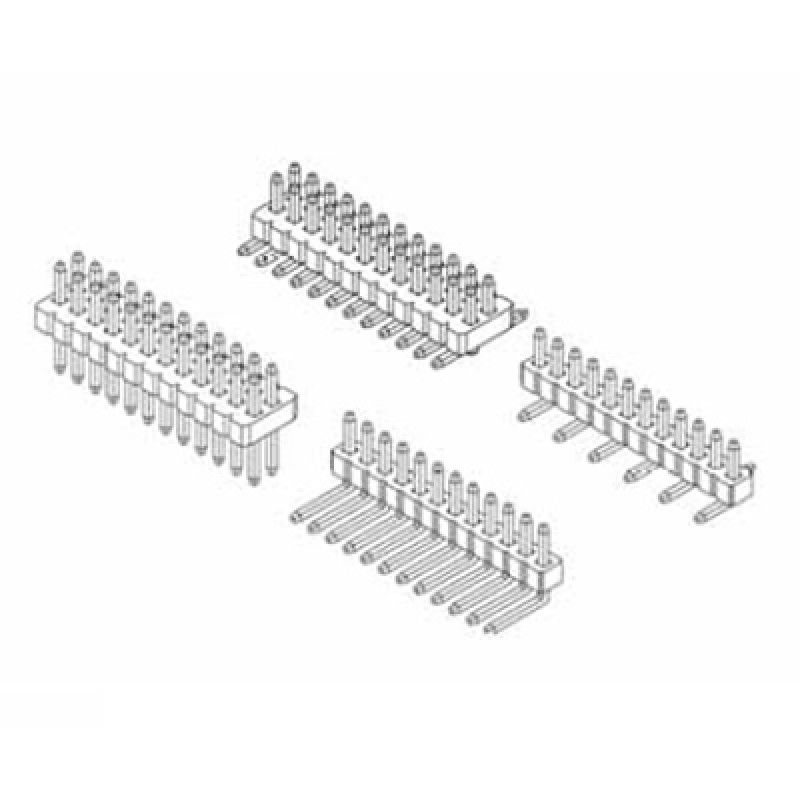

![Card Edge Header 1.00mm [.0.39"] Contact Centres (Male)](https://www.cambridgeelectronics.com/image/cache/catalog/SMH1000LPPES10STBK-1-800x800.jpg "Card Edge Header 1.00mm [.0.39\"] Contact Centres (Male)")

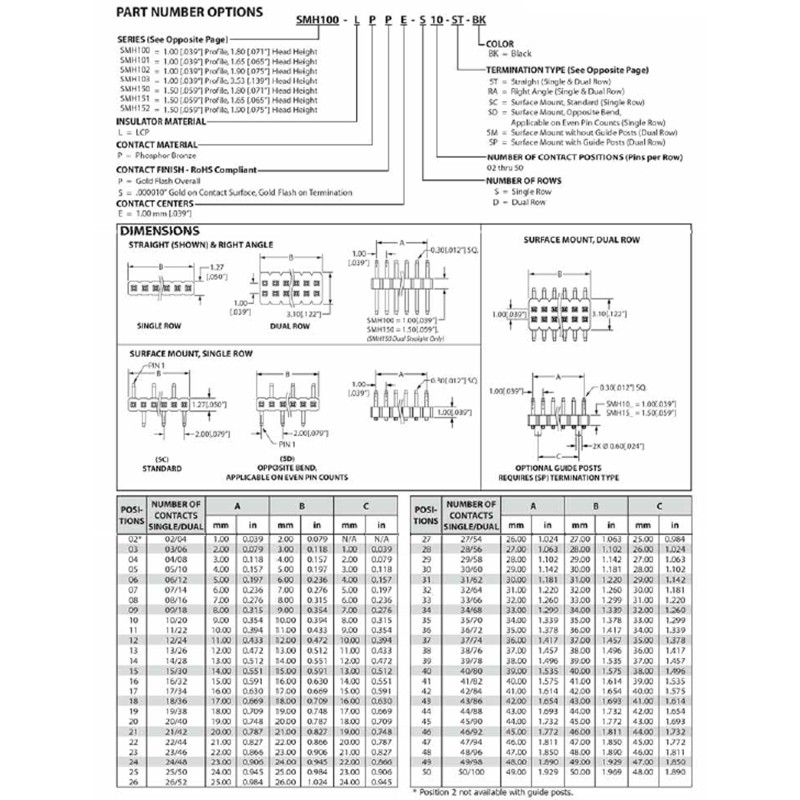

![Card Edge Header 1.00mm [.0.39"] Contact Centres (Male)](https://www.cambridgeelectronics.com/image/cache/catalog/SMH100LPPES10STBKdog-800x800.jpg "Card Edge Header 1.00mm [.0.39\"] Contact Centres (Male)")
| Electrical | |
| Current Rating | 1A rating per contact |
| Dielectric Withstanding Voltage | 300 VAC |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 1000MΩ |
| Material | |
| Contact Plating | P = Gold flash overall S = .000010"gold on contact surface, Gold flash on terminations |
| Contacts | P = Phosphor Bronze |
| Insulators | L = LCP |
| Environmental | |
| Temperature Range | -40 to +125°C |

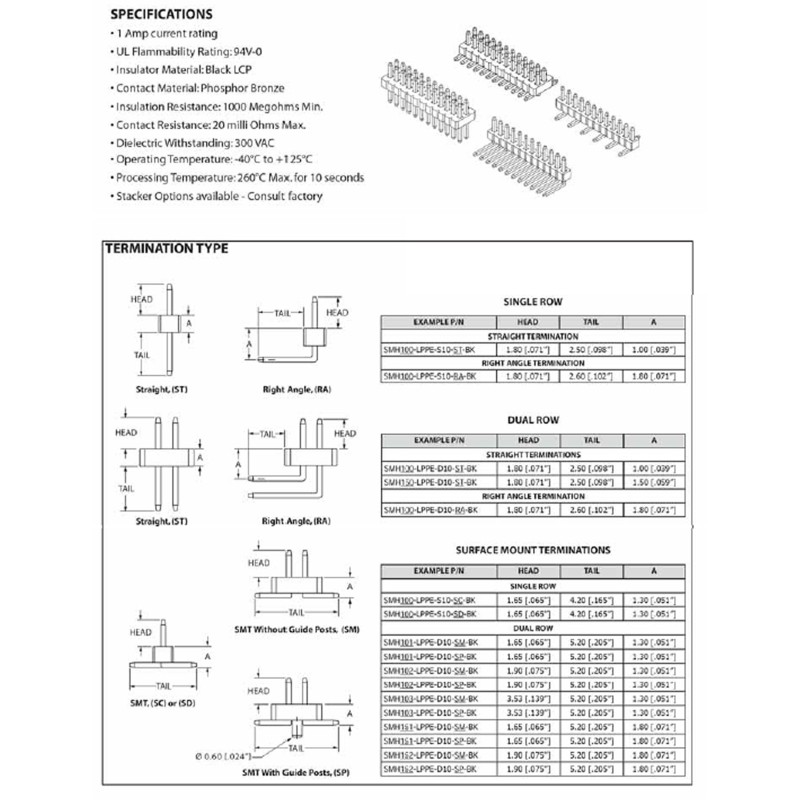

![Card Edge Header 1.00mm [.0.39"] Contact Centres (Male)](https://www.cambridgeelectronics.com/image/cache/catalog/SMH100LPPES10STBKdrawing-800x800.jpg "Card Edge Header 1.00mm [.0.39\"] Contact Centres (Male)")
