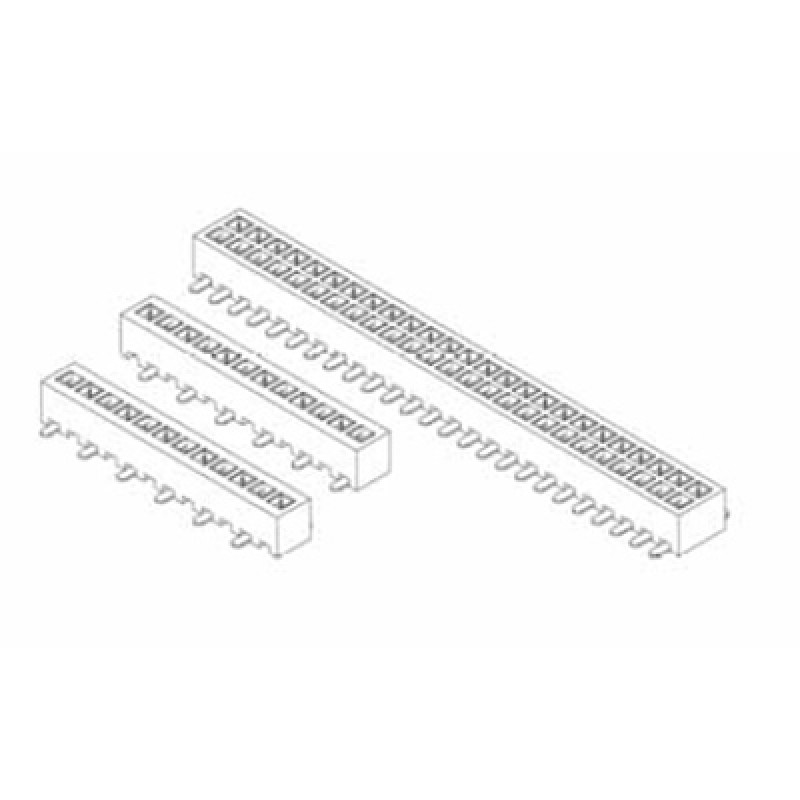

![Card Edge Header 1.27mm [.0.39"] Contact Centres (Female)](https://www.cambridgeelectronics.com/image/cache/catalog/SFM230NPPD02SMBK-1-800x800.jpg "Card Edge Header 1.27mm [.0.39\"] Contact Centres (Female)")

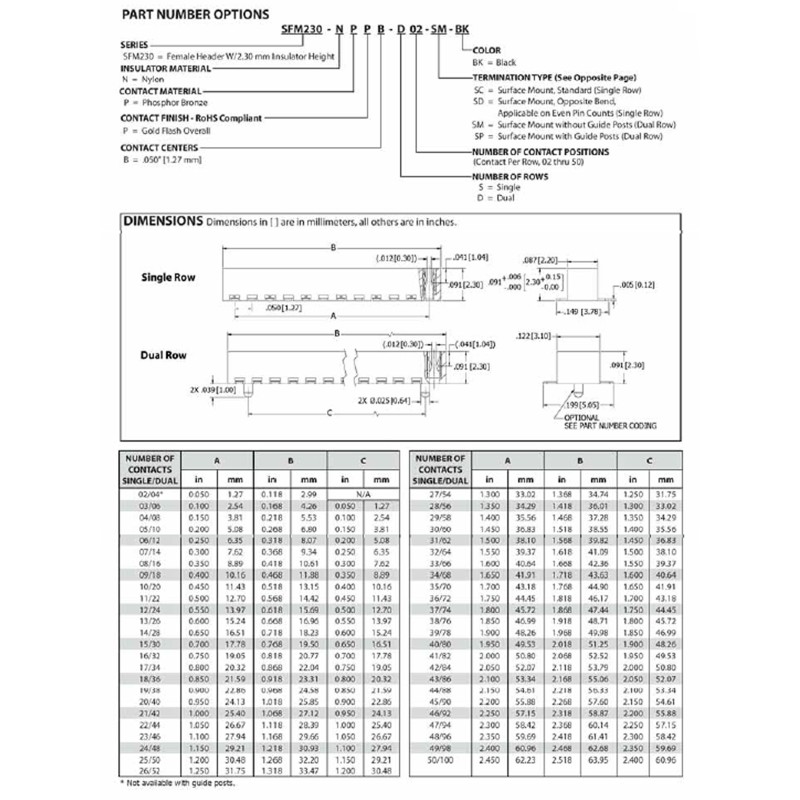

![Card Edge Header 1.27mm [.0.39"] Contact Centres (Female)](https://www.cambridgeelectronics.com/image/cache/catalog/SFM230NPPD02SMBKdog-800x800.jpg "Card Edge Header 1.27mm [.0.39\"] Contact Centres (Female)")
| Electrical | |
| Current Rating | 1A rating per contact |
| Dielectric Withstanding Voltage | 500 VAC |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 5000MΩ |
| Material | |
| Contact Plating | P = Gold flash overall |
| Contacts | P = Phosphor Bronze |
| Insulators | N = Nylon |
| Environmental | |
| Temperature Range | -40 to +105°C |

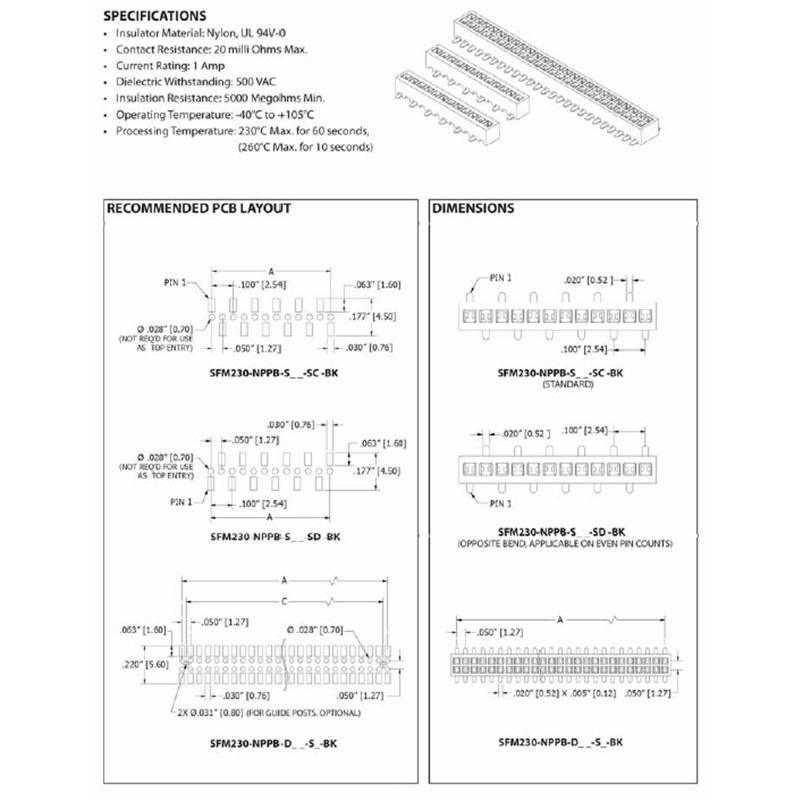

![Card Edge Header 1.27mm [.0.39"] Contact Centres (Female)](https://www.cambridgeelectronics.com/image/cache/catalog/SFM230NPPD02SMBKdrawing-800x800.jpg "Card Edge Header 1.27mm [.0.39\"] Contact Centres (Female)")
