Specification
Coding A, D
Contact 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Electrical
Current Rating 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance Cable ≥10MΩ, Connector ≥100MΩ
Connector Type Female
Environmental
Operating Temperature -40 to 100oC
Waterproof Rating IP67
General Information
Connector Part Number CC12-XXS-X-MM
Mounting Type Cable

SCM12-XXSXS-XXXX - M12 Over-moulded Socket Cable Assembly (A or D Code)

  • Product Code: SCM12-XXSXS-XXXX

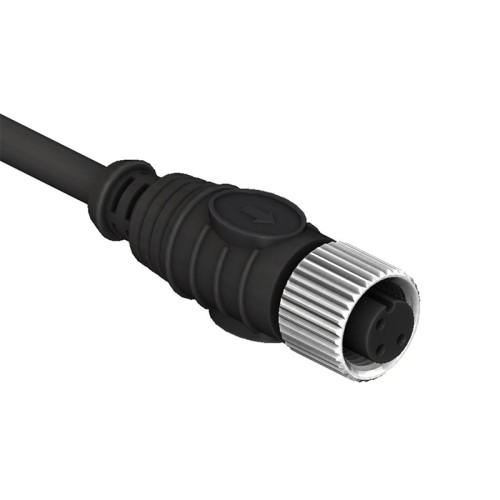

The SCM12-XXSXS-XXXX is an M12 over-moulded socket cable assembly with a stub end for completion with a termination of your choice. The M12 socket is available in an A or D coding with 2 to 12 pin options. The assembly can be supplied to your required length or can be made into a bespoke assembly with terminations of your choice to the other end.

Features

  • Can be used for power or signal pins
  • IP67 Waterproof rating
  • Suitable for a wide range of applications
  • Can be supplied as a bespoke cable assembly with or without terminations to the other end.

    SCM12-XXSXS-XXXX - M12 Over-moulded Socket Cable Assembly (A or D Code)

Tags: M12 Socket, A Code, D Code,
