Specification
Coding	A, B
Contact	2, 3, 4, 5, 6, 8
Shielded	No
Electrical
Withstanding Voltage	500V AC/Minute (2 to 5 Pins), 250V AC/Minute (6 to 8 Pins)
Current Rating	3A AC/DC (2 to 5 Pins), 1A AC/DC (6 to 8 Pins)
Voltage Rating	60V AC/DC (2 to 3 Pins), 30V AC/DC (4 to 8 Pins)
Contact Resistance	≤5mΩ
Insulation Resistance	≥100MΩ
Material
Contacts	Brass Gold Plated
Insulators	UL94V-0 Black
Connector Body	Brass Nickel Plated
Nut	Brass Nickel Plated
Environmental
Operating Temperature	-40 to 85oC
General Information
Mounting Type	Cable

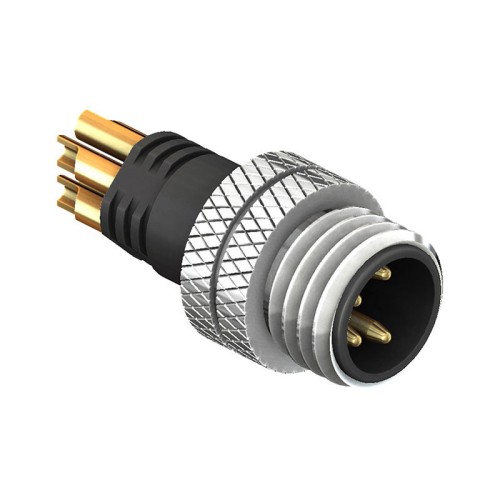

CC08-XXP-X-MM - M8 Plug for Over-moulded Cables (A and B Code)

Product Code: CC08-XXP-X-MM

The CC08-XXP-X-MM is an M8 plug which is designed specifically for over-moulded cables. The circular connector is available in A and B coding, with a 2 to 8 way pin assignment option and features solder buckets to the rear. The connector can be mounted to wires without over-moulding but is also available as a ready made cable assembly under part number SCM08-XXPXS-XXXX for a straight cable style or SCM08-XXPXR-XXXX as a right-angle mounted cable, to your required length.

Features
