CC12R-XXS-FX-PB - M12 Right Angle Socket (A and D Code)
CC12R-XXS-FX-PB - M12 Right Angle Socket (A and D Code)  CC12R-XXS-FX-PB - M12 Right Angle Socket (A and D Code)

Specification

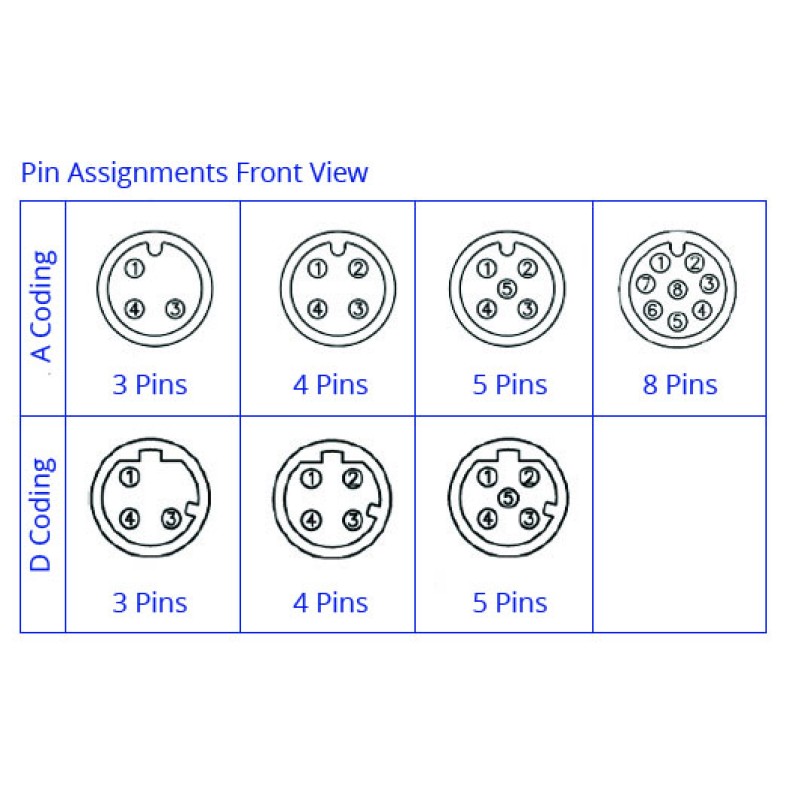

Coding D, A
Contact 3, 4, 5, 8
Electrical
Withstanding Voltage 500V AC/Minute
Current Rating 4A AC/DC (3 to 5 Pins), 2A AC/DC (8 Pins)
Voltage Rating 250V AC/DC (3 and 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (8 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators PA66
Connector Body Brass Nickel Plated
Seal Silicone
Nut Brass Nickel Plated
Environmental
Operating Temperature -25 to 90oC
Waterproof Rating IP67
General Information
Mounting Type Right Angled

CC12R-XXS-FX-PB - M12 Right Angle Socket (A and D Code)

  • Product Code: CC12R-XXS-FX-PB


The CC12-XXS-FX-PB is a right angle M12 circular socket designed for mounting directly onto a PCB. It is available in an A or D coding with 3, 4, 5 and 8 pins. The connector has integrated PCB support points for holding into the board for precise location prior to soldering. The connectors have a front fastening nut for mounting onto an equipment panel of between 2 and 3mm in thickness.

Features

  • Right angle to mount directly onto a PCB
  • Available in A and D coding
  • 3, 4, 5 and 8 Pins
  • For panel thicknesses of 2-3mm

    CC12R-XXS-FX-PB - M12 Right Angle Socket (A and D Code)

Tags: M12 Socket, A Code, D Code, Front Fastening, Right Angle,
