Specification
Coding A, D

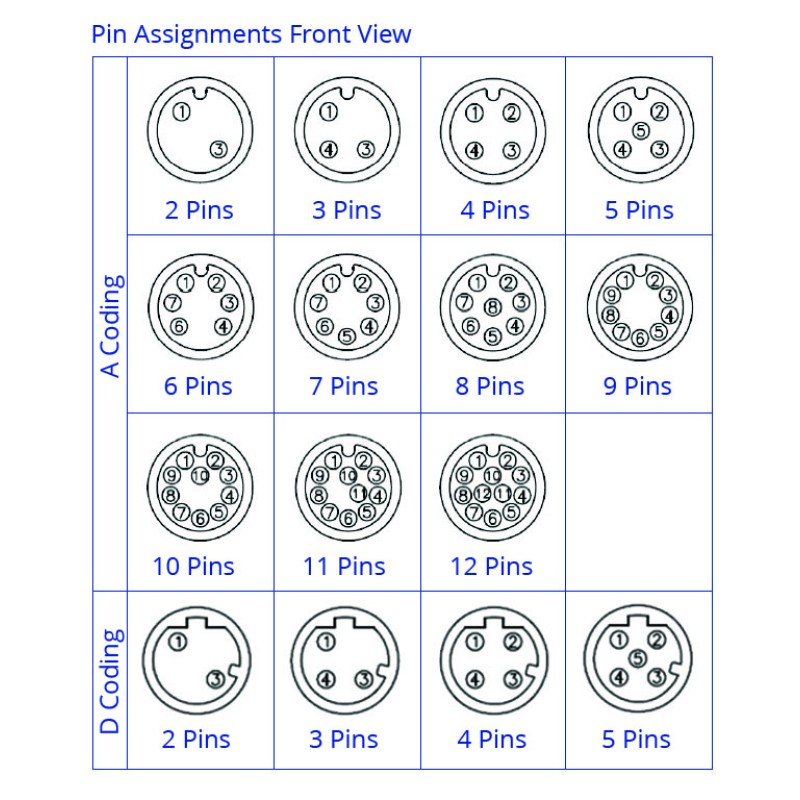

Contact 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Electrical
Withstanding Voltage 500V AC/Minute
Current Rating 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins), 1.5A AC/DC (9 to 12 Pins)
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 12 Pins)
Contact Resistance ≤5mΩ
Insulation Resistance ≥100MΩ
Material
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Brass Nickel Plated
Seal Silicone
Nut P9 or M16 Brass Nickel Plated
Environmental
Operating Temperature -40 to 100oC
Waterproof Rating IP67
General Information
Mounting Type PCB

CC12-XXS-FX-PBX - M12 Front Fastening Socket (A and D Code)

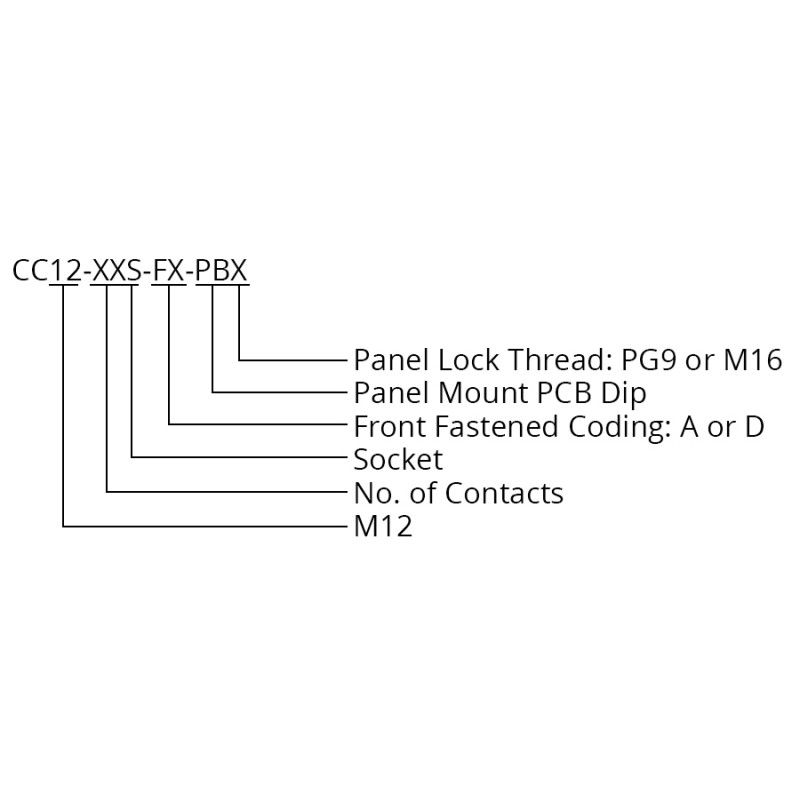

  • Product Code: CC12-XXS-FX-PBX


The CC12-XXP-FX-PBX is an M12 circular plug connector which is available with 2 to 12 pins options in an A and D coding. The connector features straight pins to the rear for mounting directly to a PCB. The M12 connectors are designed for use in industrial applications and feature a small and robust design which has a waterproof rating to IP67, which protects your equipment from entry of water or dust into your system.

Features

  • Straight pins to mount directly onto a PCB
  • Available in A  and D coding
  • 2 to 12 Pins
  • Offering speeds up to 10Gbps

    CC12-XXS-FX-PBX - M12 Front Fastening Socket (A and D Code)
