| Electrical | |
| Current Rating | 1.1A rating per contact |
| Material | |
| Contact Plating | B = .000010" Gold C = .000030" Gold W = Gold Flash |
| Contacts | G = Phosphor Bronze |
| Insulators | G = Nylon |
| Environmental | |
| Flammability | UL94V-O |
| Mechanical | |
| Board Size | 1.57mm [.062"] |

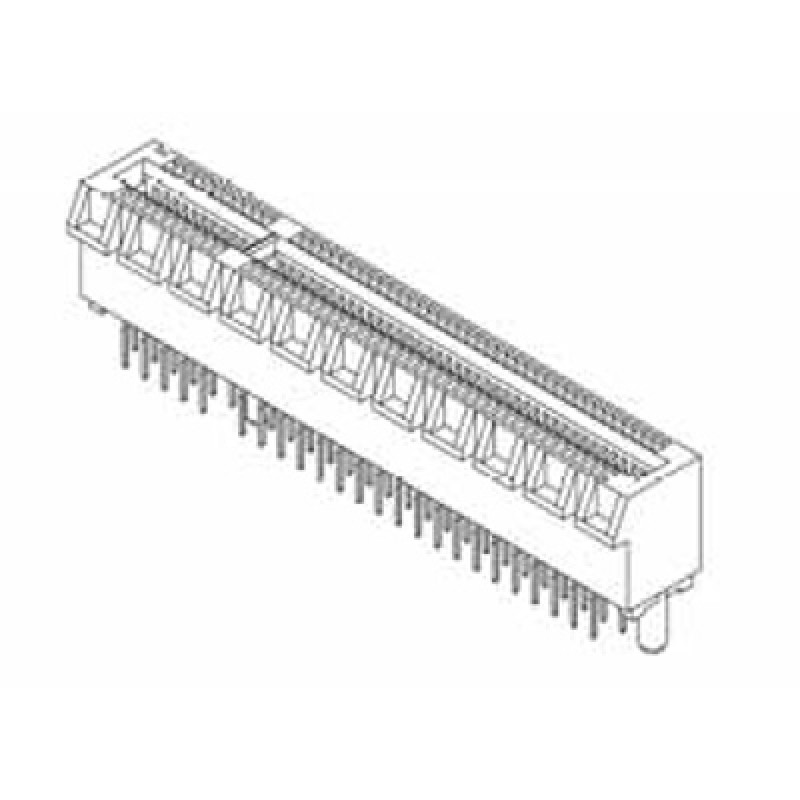

Card Edge Header 1.00mm [.039"] Contact Centres, PCI Express
- Product Code: GBE18DHHN-T921
The GBE18DHHN-T921 is a female card edge header that accommodates a 1.57mm thick PC board and supports 2.5, 5.0 or 8.0 GT/s transfer rate. All PCI express parts meets the latest PCI Express specifications.
