Specification
Coding A, B, D
Contact 4, 5, 6, 7, 8, 3, 2
Shielded No
Electrical
Withstanding Voltage 500V AC/Minute
Current Rating 4A AC/DC (2 to 5 Pins), 2A AC/DC (6 to 8 Pins)
Voltage Rating 250V AC/DC (2 to 4 Pins), 60V AC/DC (5 Pins), 30V AC/DC (6 to 8 Pins)
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ
Material
Coupling Screw Brass Nickel Plated
Contacts Brass Gold Plated
Insulators UL94V-0 Black
Connector Body Nylon Black
Environmental
Operating Temperature -25 to 85oC
Waterproof Rating IP67
General Information
Mounting Type Cable

CC12R-XXP-X-AE4 - M12 Cable Mounted Right Angle Plug (A,B and D Code)

  • Product Code: CC12R-XXP-X-AE4

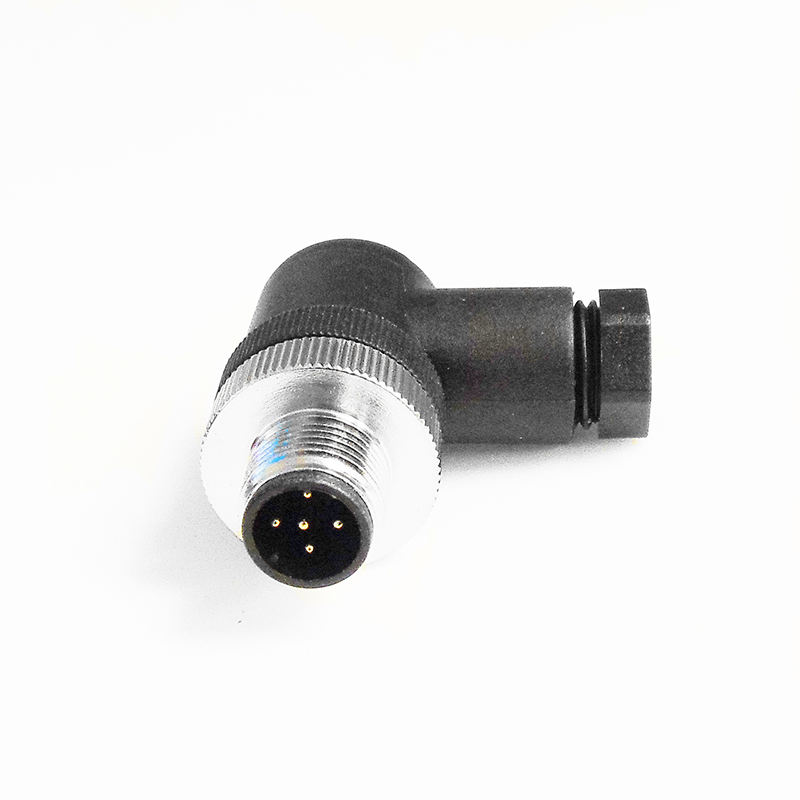

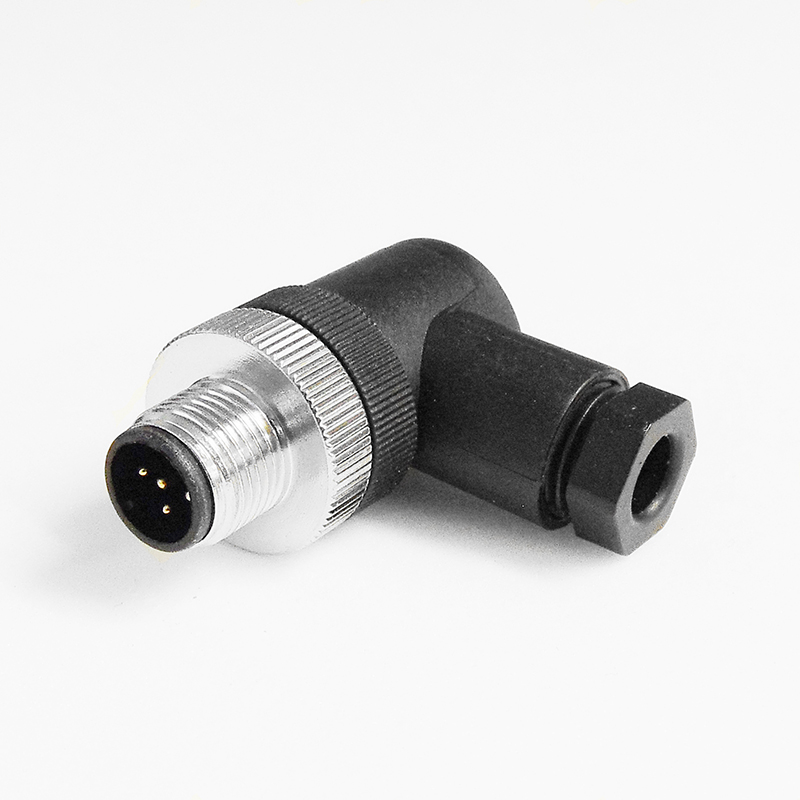

The CC12R-XXS-X-AE4 is a cable-mounted M12 connector. It is available in A, B and D Coding and has a screw termination style for easy connection onto a cable of between 4 and 6mm in diameter. The connector can be purchased as a loose connector or as part of a bespoke cable assembly. This connector can be used for power or signal connections and is rated as IP67, so can be used in damp or dusty environments whilst assuring protection from the elements for your equipment.

Features

  • Cable mounting for cable between 4 and 6mm in diameter
  • Available in A, B and D coding
  • 2 to 8 Pins

    CC12R-XXP-X-AE4 - M12 Cable Mounted Right Angle Plug (A,B and D Code)

Tags: M12 Plug, A Code, B Code, D Code, Right Angle,
