| Electrical | |
| Impedance | 75Ω |
| Frequency Range | 0 - 12GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.04 (max) DC - 6GHz 1.08 (max) 6 -12GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Material | |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Environmental | |
| Temperature Range | -65 to +85°C |
| Mechanical | |
| Mating Cycles | 250 |
| Processing | |
| Processing | Maximum wave and hand soldering temperature 265°C |
| General Information | |
| Mounting Type | Top Entry |
| Leg Length | 4.14mm |

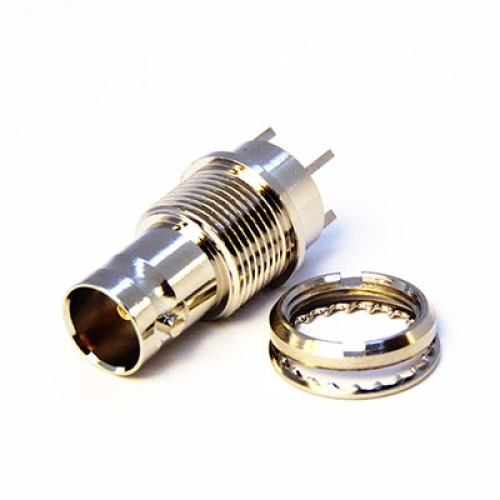

| Hardware | Supplied with 2 slot circular nut and shakeproof washer |
