C-SX-178 - Top Entry PCB Mounted Micro BNC Bulkhead Socket

Electrical
Impedance 75Ω
Frequency Range 0 - 12GHz
Working Voltage 170Vrms
Dielectric Withstanding Voltage 500Vrms
Reflection Factor (VSWR) 1.00 (max) DC - 6.0GHz 1.01 (max) 6 - 12GHz 1.04 (max) 12 - 25GHz
Contact Resistance Centre contact 5.0mΩ Outer contact 2.5mΩ
Insulation Resistance 1000MΩ
Connector Type Female
Material
Metal Parts Brass / Au
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum hand or wave soldering temperature 265°C
General Information
Mounting Type Top Entry
Leg Length 2.5mm
Hardware Supplied with a 2 slot circular nut

C-SX-178 - Top Entry PCB Mounted Micro BNC Bulkhead Socket

  • Product Code: C-SX-178


Our range of Precision Micro BNC coaxial connectors are optimised for 12GHz, 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress CXP-12 specification. These high performance connectors allow you to achieve up to 25GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using Cambridge Connectors CoaxVisionTM Micro BNC Connectors in both halves.

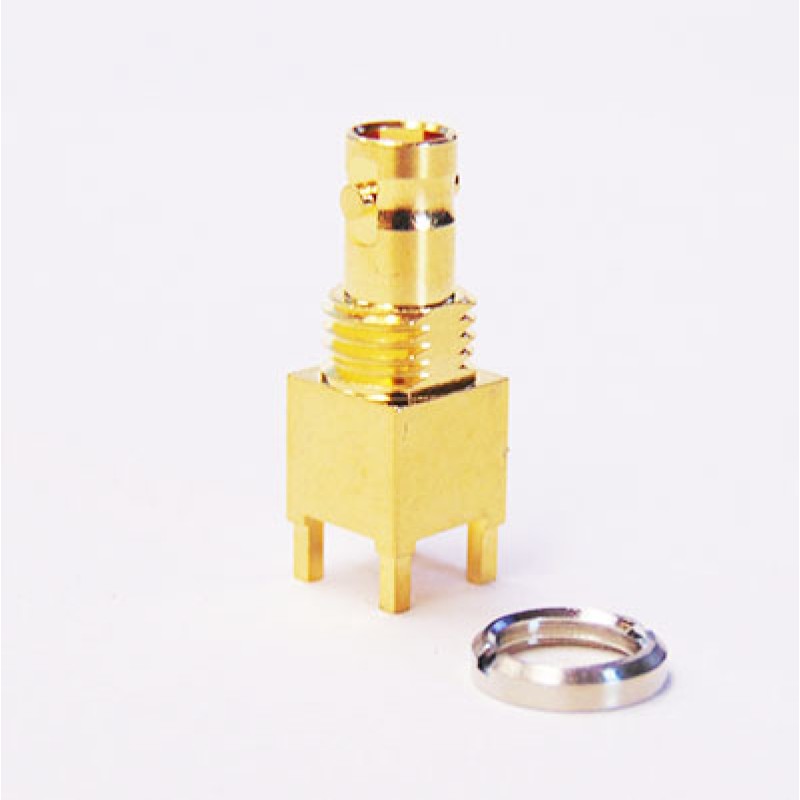

The C-SX-178 connector is a PCB top entry Micro BNC bulkhead which features a 6.2mm stand off and is supplied with circular nut.
