| Electrical |
| Impedance |
75Ω |
| Frequency Range |
0 - 6GHz |
| Working Voltage |
250Vrms |
| Dielectric Withstanding Voltage |
750Vrms |
| Reflection Factor (VSWR) |
1.07 (max) DC - 1.5GHz
1.14 (max) 1.5 - 3.0GHz
1.16 (max) 3.0 - 3.2GHz
1.31 (max) 3.2 - 6.0GHz |
| Contact Resistance |
Centre contact 4.0mΩ
Outer contact 2.5mΩ |
| Insulation Resistance |
1000MΩ |
| Connector Type |
Female |
| Material |
| Metal Parts |
Brass / Au |
| Centre Pin |
BeCu / 10µ Au |
| Insulators |
PTFE |
| Environmental |
| Temperature Range |
-65 to +85°C |
| Mechanical |
| Mating Cycles |
500 |
| Processing |
| Processing |
Maximum wave and hand soldering temperature 265°C |
| General Information |
| Mounting Type |
Right Angled |
| Leg Length |
4.2mm |

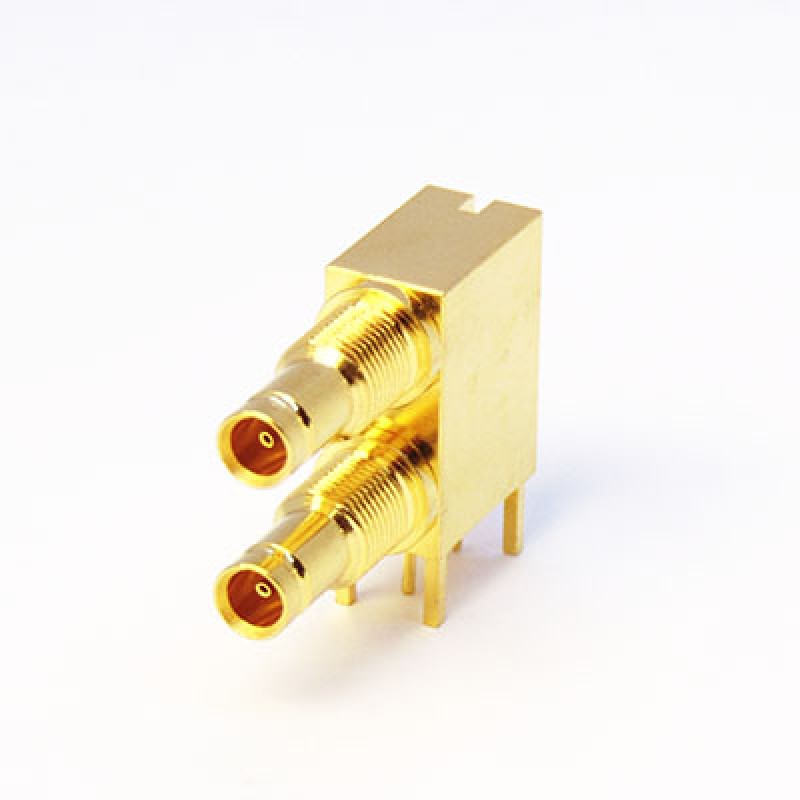

C-SX-167G - Dual Port Right Angled DIN1.0/2.3 Bulkhead Connector
The new part number for this part is XGS-06-RB42-GGD
The C-SX-167G precision 75Ω 1.0/2.3 dual port right angle PCB mounted Connector is designed for Multi Layer PCB applications which require a longer leg length of 4.2mm. The connector is NOT supplied with nuts.
