C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®
C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®  C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®  C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®

Electrical
Impedance 75Ω
Frequency Range 0 - 6 GHz
Working Voltage 250Vrms
Dielectric Withstanding Voltage 750Vrms
Reflection Factor (VSWR) 1.15 (max) DC - 3GHz 1.36 (max) 3 - 6GHz
Contact Resistance Centre contact 4.0mΩ Outer contact 2.5mΩ
Insulation Resistance 1000MΩ
Connector Type Female
Material
Metal Parts Brass / Au / Ni
Centre Pin BeCu / 10µ Au
Insulators PTFE
Environmental
Temperature Range -65 to +85°C
Mechanical
Mating Cycles 500
Processing
Processing Maximum wave and hand soldering temperature 265°C
General Information
Mounting Type Right Angled
Leg Length 2.0mm
Hardware None

C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®

  • Product Code: C-SX-143

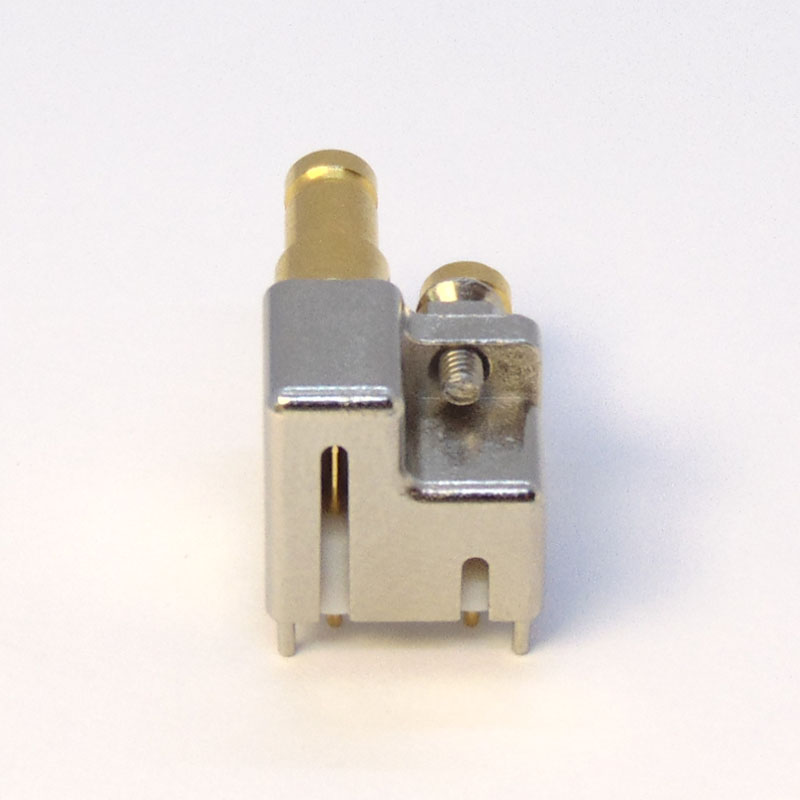

The C-SX-143 is a low profile dual port connector which allows an enhanced packing density of connections on a standard PCI Card. This is made possible by combining the small format of DIN 1.0 / 2.3 style connectors with a unique diagonal mounting style, while also offering the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection.






    C-SX-143 - Dual Port DIN 1.0 / 2.3 Connector System for PCI Express®
