The XBS-03-EB16-NN is an edge mounted PCB connector which is designed for a PCB thickness of 1.6mm.
| Impedance | 75Ω |
| Frequency Range | 0 – 3GHz |
| Working Voltage | 500Vrms |
| Dielectric Withstanding Voltage | 1500Vrms |
| Reflection Factor (VSWR) | 1.08 (max) DC – 1.5GHz 1.16 (max) 1.5 – 3GHz |
| Contact Resistance | Centre contact 1.5mΩ Outer contact 1.0mΩ |
| Insulation Resistance | 5000mΩ |
| Connector Type | Female |
| Metal Parts | Brass / Ni |
| Centre Pin | Phosphor Bronze / 10µ Au |
| Insulators | PTFE |
| Temperature Range | -65 to +85°C |
This connector is available as:
XBS-03-EB16-NN as the connector only part
XBS-03-EB16-NN-AA when supplied with a hex nut and crinkle washer (formerly C-SX-058)

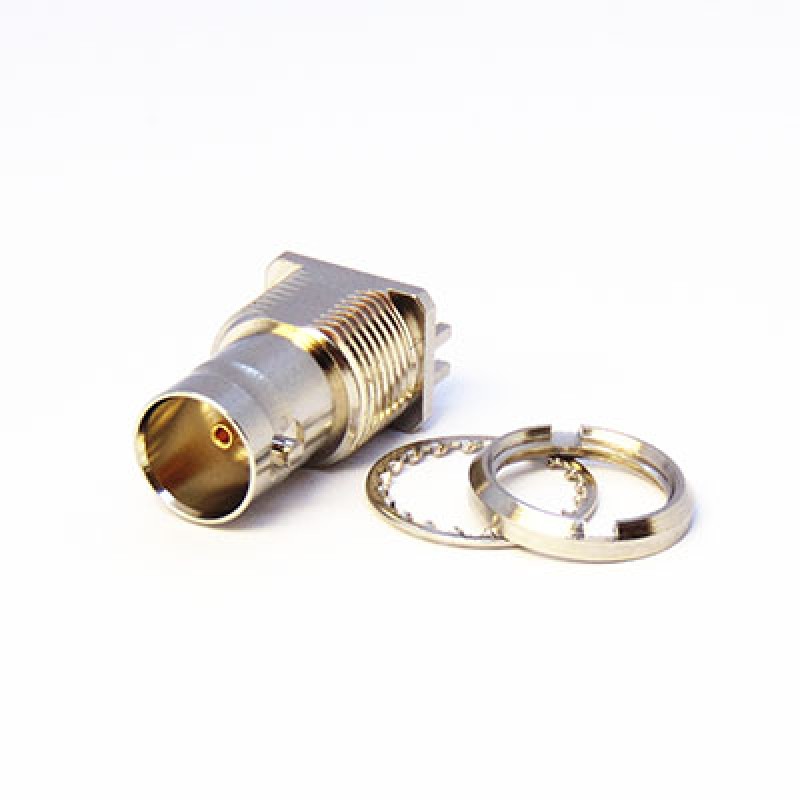

XBS-03-EB16-NN-CA when supplied with a 2-slot circular nut and crinkle washer (formerly C-SX-076)
| Processing | Maximum hand soldering temperature 265°C |
| Mounting Type | Edge Mounted |
| Board Thickness | 1.6mm |
| Hardware | Available separately |
