C-SD-334 - Mixed Layout D Subminiature Right Angle Connector

Electrical
Test Voltage 1000V
Current Rating 5A
Contact Resistance ≤2.7mΩ
Insulation Resistance ≥5000MΩ
Connector Type Female
Material
Metal Parts Steel with tin plate finish
Contacts Brass, Flash Gold Plated
Insulators thermoplastic glass filled UL94 V-O (green)
Environmental
Temperature Range -55 to 130°C
Processing
Processing Hand and Wave Soldering

C-SD-334 - Mixed Layout D Subminiature Right Angle Connector

  • Product Code: C-SD-334

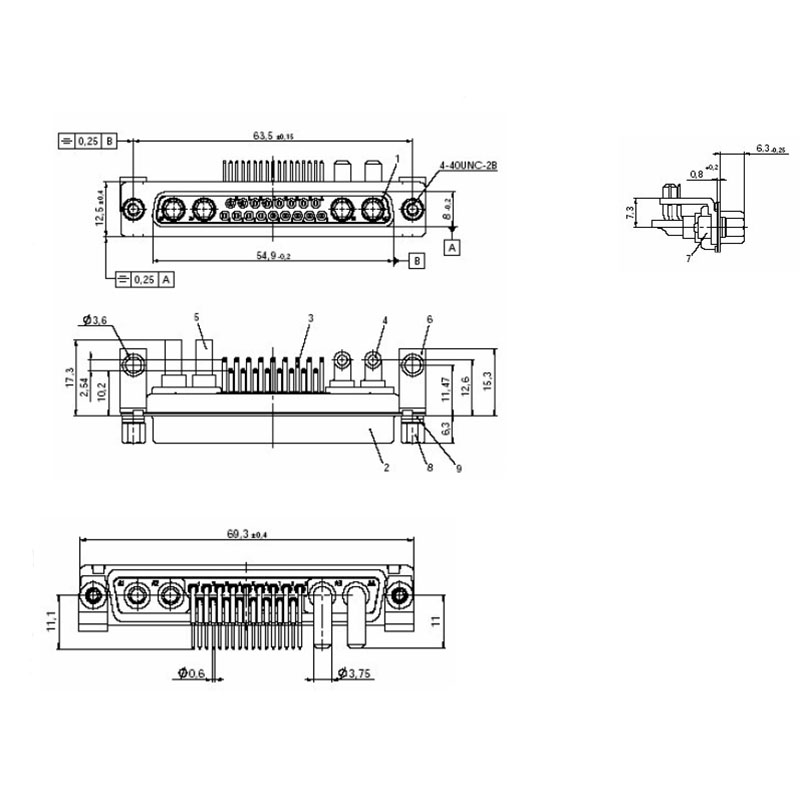

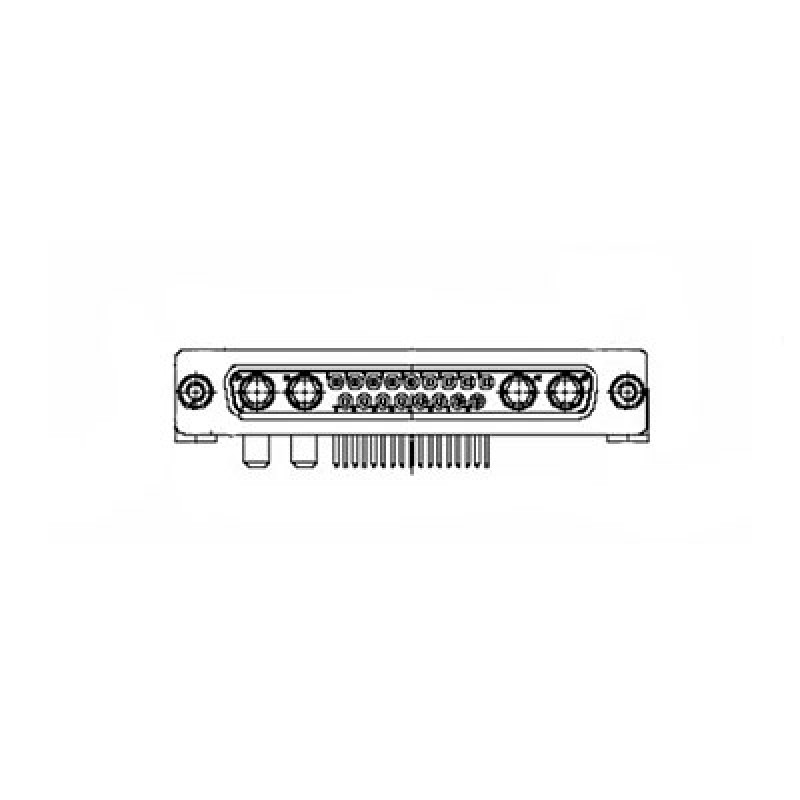

The C-SD-334 is a 21W4 mixed layout connector that features 17 female contacts with 4 fitted high power contacts, 2 straight and 2 right angle. The connector also features female screwlocks and clinch nuts all fitted with the mounting bracket to the mixed layout connector.
