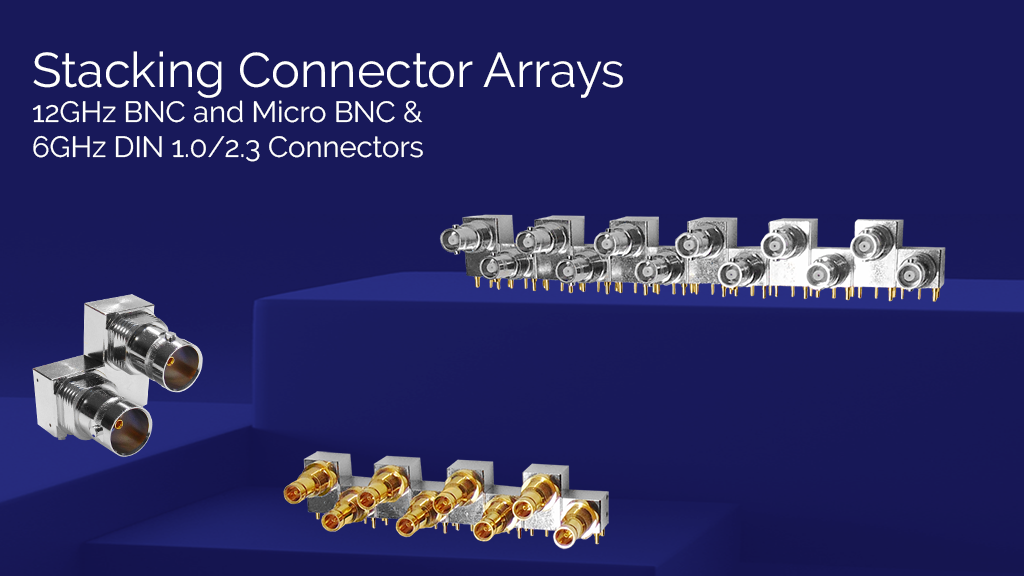

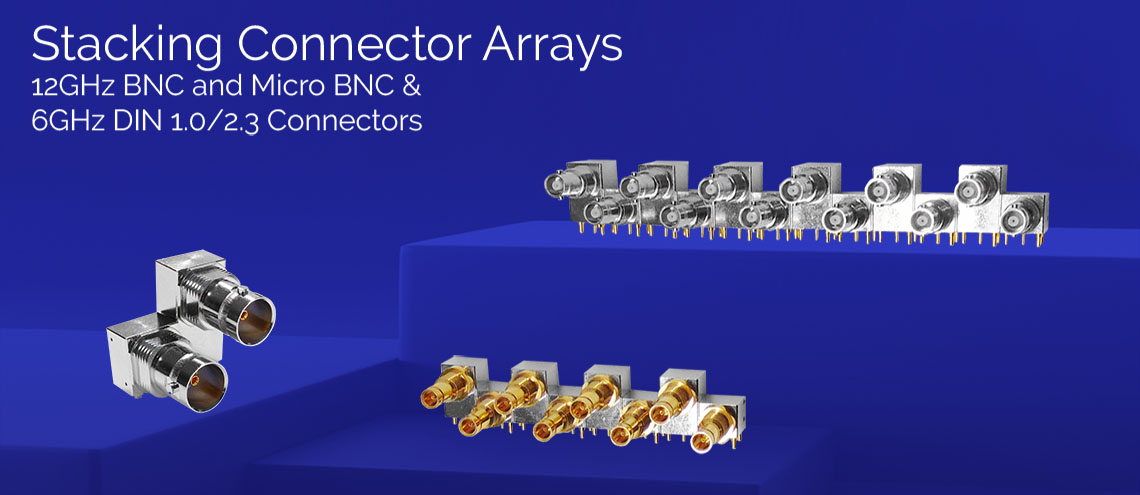

Stacking Connector Arrays - 12GHz Micro BNCs and BNCs & 6GHz DIN 1.0/2.3s

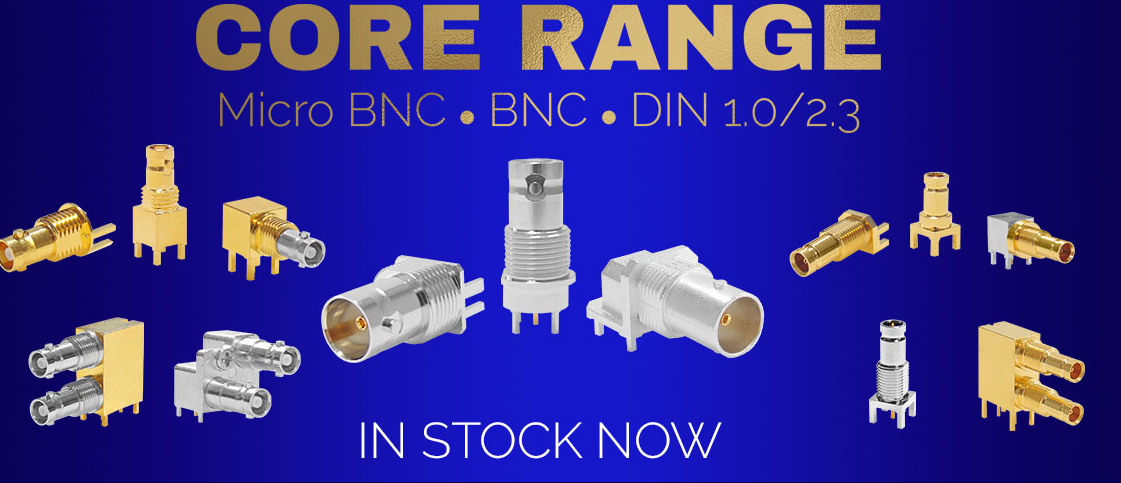

The Core Range - Micro BNCs, BNCs and DIN 1.0/2.3s

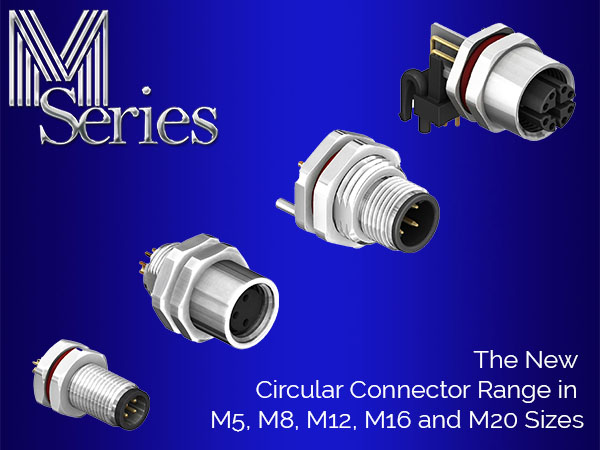

The Circular Connector Range in M5, M8, M12, M16 and M20 Sizes
Our sectors
Products of the highest quality
Designed in the UK and manufactured with our longstanding partner in Taiwan, our cables and connectors combine British engineering with IPC-accredited quality. Every assembly is specified to your environment, 100% tested and fully traceable – from prototype to scheduled production.
Featured products
A snapshot of our most requested components and assemblies. Each item can be tailored — lengths, overmoulds, pin-outs and materials — to meet your exact specification. View the range below or talk to us about a custom variant.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves. The XBS-12-EB16-NNS connector is an PCB edge mounting BNC socket for PCB thicknesses of 1.6mm
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve optimum performance we recommend using Cambridge Electronics 12GHz BNC Connectors in both halves.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The XBS-12-TB41-NN connector is a top entry, five pin connector for bulkhead mounting. It is designed for a board thickness of up to 4.0mm.
Our range of 12GHz Precision BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while
meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but to achieve peak design performance we recommend using Cambridge Connectors 12GHz CoaxVision™ BNC plug and socket.
The XBT-1069-NGXX connector is a cable mounted plug which can be used with Belden cable types 1694A, 4694R, 4855R, 4505R and 4794R.
The following tools are recommended for use with this connector:
XBT-1069-NGAB = TLG 109
XBT-1069-NGAS = TLG 124
XBT-1069-NGBA = TLG 109 or TLG 110
XBT-1069-NGDE = TLG 109 or TLG 110
Our range of 12GHz Precision BNC coaxial connectors conform to the SMPTE ST 2028-1 broadcast standard and are optimised for use in 6G SDI applications, whilst also meeting the JIIA CoaXPress specification. These high-performance connectors allow you to achieve a 12GHz channel in one single connection. The BNC connectors are mateable with any standard BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 6GHz BNC plugs, designed for use with in the BA cable group such as Belden 1855A and 4855R.
The XBT-1072-NGBA connector is a right angle cable mounted BNC plug, which can be used with Belden cables for 6G applications.
The following tool is recommended for this connector:
XBT-1072-NGBA = TLG 111
Our range of Precision Micro BNC coaxial connectors are optimised for 12GHz, 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress CXP-12 specification. These high performance connectors allow you to achieve up to 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but to achieve optimum performance we recommend using CEI connectors CoaxVisionTM Micro BNC Connectors in both halves.
The design of this low profile dual port connector allows an enhanced packing density of connections on a standard PCI card. This is made possible by combining the small format of the Micro BNC style Connectors
with a diagonal mounting format. The XPS-12-RA20-NND is a low profile 12GHz 75Ω dual Micro BNC Connector that is optimised for high speed high definition video applications such as 12G SDI Broadcast and CXP-12 CoaXPress Machine Vision.
This connector was formerly sold as:
C-SX-172 as a connector only product
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-RB24-GND is a dual port Micro BNC connector, removing the need for PCB mezzanine configurations in high density applications.
Our 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications while meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-RB41-GN is a right angle Bulkhead Micro BNC socket for PCB thicknesses up to 4.0mm
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications whilst meeting the JIIA CXP-12 CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector. The XPS-12-TB25-GG connector is a PCB top entry Micro BNC bulkhead which features a 6.2mm stand off and is designed for boards up to 2.4mm.
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVision™ Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs, designed for use with 12GHz cable (such as Belden 4855R, 1694A, 4694R, 4505R).
The XPT-D001-NGXX connector is a cable mounted Micro BNC plug, which can be used with Belden cables for 12G applications.
The following tools are recommended for use with this connector:
XPT-D001-NGAB = TLG 109
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection. The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.
The XPT-D005-NGBG connector is a cable mounted right angle Micro BNC plug, designed for use with 12GHz cable (such as Belden 1855A B4855R, UHD-0.6/2.6).
The following tools are recommended for use with this connector:
XPT-D005-NGBG = TLG 109 or TLG 110
Our range of 12GHz Precision Micro BNC coaxial connectors are optimised for 4K/Quad HD and Ultra HD Broadcast applications and have been developed under the CoaxVisionTM Brand name, while meeting the JIIA CoaXPress specification. These high performance connectors allow you to achieve a 12GHz channel in one single connection.
The Micro BNC connectors are mateable with any standard Micro BNC connector, but optimum performance is achieved when PCB mounted styles are interfaced with these Cambridge Connectors 12GHz Micro BNC plugs.
The XPT-D005-NGBH connector is a cable mounted right angle Micro BNC plug, designed for use with cable (such as Belden 1694A 4694R, RG6).
The following tools are recommended for use with this connector:
XPT-D005-NGBH = TLG 111
The XGS-06-EB16-GG is a low profile PCB edge mounted connector which conforms to the standard of SMPTE ST 2081-1 , allowing bit-rates of 5.94bit/s over a single coaxial connection. The 8mm pitch of the connector enables high wiring densities and is optimised for use in 6G HD-SDI applications. The connector is gold plated, but can also be purchased as a nickel plated option and is for a PCB thickness of 1.6mm.
The XGS-06-RB26-NG is a right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1 and CXP-6, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch and low profile of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
The XGS-06-RB42-GGD is a dual port right angle PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1 and CXP-6, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The connector is designed for Multi Layer PCB applications which require a leg length of 4.2mm.
This connector was formerly sold as:
C-SX-167G as a connector only part
The XGS-06-TE27-GG is a top entry PCB bulkhead mounted connector with a short body which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications. The connector has 4 legs which are 2.7mm.
This connector has the same profile as the C-SX-097G but has improved performance at 3GHz and extends its potential working to the full 6GHz range for DIN 1.0/2.3 connectors.
The XGT-8013-NGXX range is a precision 75Ω cable mounted DIN 1.0 / 2.3 plug which is suitable for frequencies up to 6GHz. The connectors are part of the 6G-SDI CoaxVision™ range and are compatible with the SMPTE ST-2081. which allows 6Gbits/s over a single channel.
The range of 4 connectors support cable groups of AB (RG59B/U, 1505A), AS (RG6, 1694R, 4694R), AF (RG179) and BA (1855A, 4855R and mini RG59).
The following tools are recommended for use with this connector:
XGT-8013-NGAB = TLG 109
XGT-8013-NGAF = TLG 123
XGT-8013-NGBA = TLG 109
XGT-8013-NGBG = TLG 123
The XGS-06-TB27-NN is a top entry PCB bulkhead mounted connector which conforms to the standard of SMPTE ST 2081-1, allowing bit-rates of 5.94Gbit/s over a single coaxial connection. The 8mm pitch of the connector enables double wiring densities and is optimised for use in 6G HD-SDI applications.
How it works
Whether you need a single prototype or scheduled production, our process keeps your project moving, with clear guidance at every stage.
1. Established Range
Explore proven parts from our catalogue or send your spec for a fast, configurable match.
2. Design and Prototype
Work directly with our engineers to refine pinouts, materials, and overmolding. Quick samples for validation.
3. Manufacture and Deliver
ISO and IPC accredited build, 100% tested and fully traceable — packaged and delivered on time and to budget.
Why choose Cambridge Electronic Industries
Collaborative Working
40+ Years’ UK Design
Global Manufacturing Solutions
Bespoke services

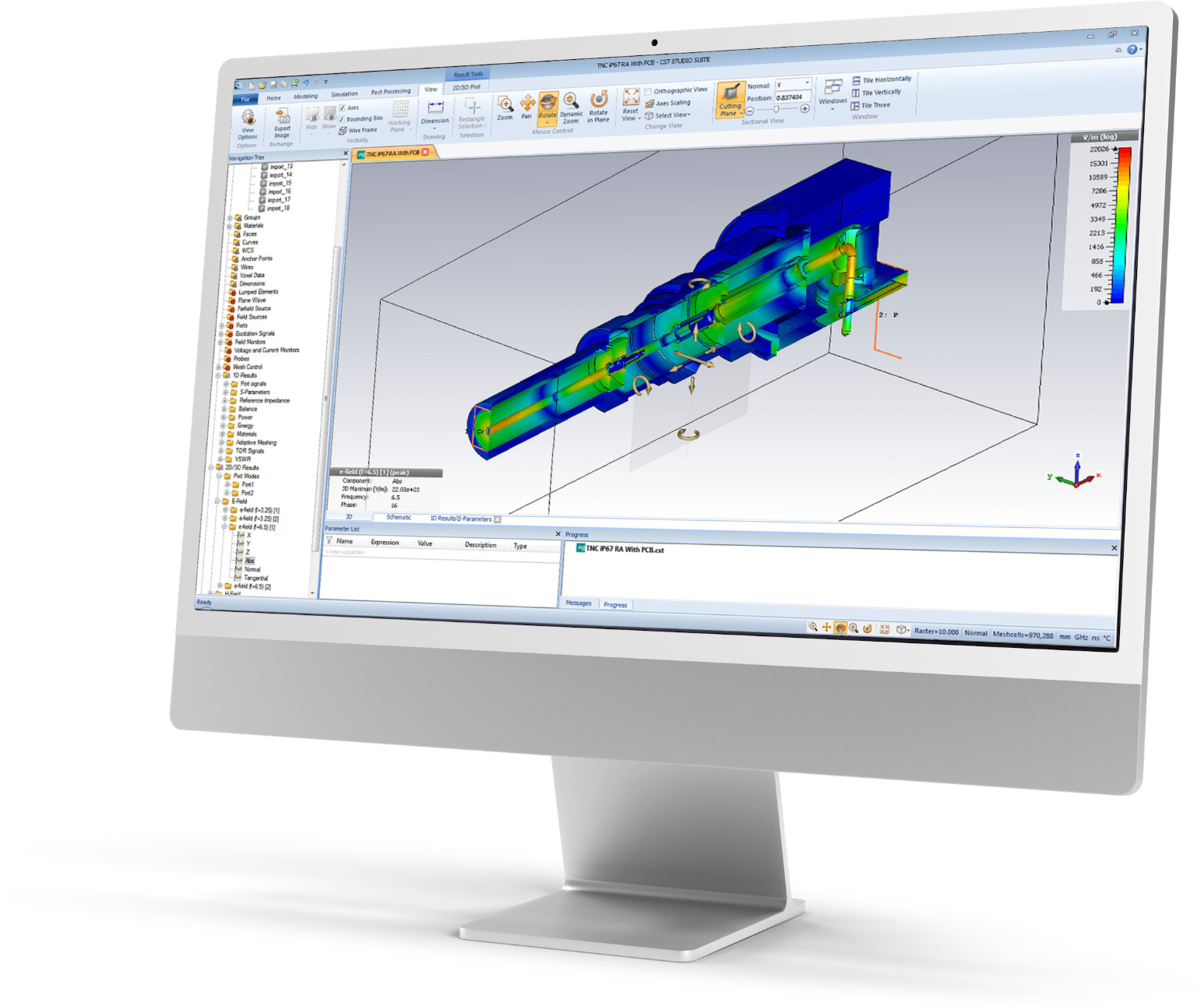

At Cambridge Electronic Industries we are proud to be able to offer a complete design assistance service. If you are looking for a new connector for a particular application, a specialist cable to be produced or some help with bringing your new product design to reality, then we have the expertise on hand at our Waterbeach Head Office.
Latest: Meet the M Series, our very own Circular Connectors
Watch our video to explore the full range, features, and benefits that make the M Series the go-to choice for engineers and designers worldwide. Visit our Youtube channel to see more.
